PCI-DAS6013
PCI-DAS6013
Basic, 16-channel, 200 kS/s I/O boards with eight digital I/O, and two counter/timers

  • Functionally equivalent to National Instruments PCI-6013
  • Extremely low cost
  • 16 channels of 16-bit A/D resolution
  • 200 kS/s maximum sample rate
  • 8 bits DIO
  • 2 16-bit counters

General Description

The PCI-DAS6013 from Measurement Computing is a very low cost 16-bit analog I/O that plugs into any PCI slot in your computer. Combined with your software, it turns a personal computer into a complete measurement system that may be used to automate a wide assortment of experiments and tests. The low cost of the PCI-DAS6013 makes it an ideal choice in educational/teaching applications as well as any other application where price is a key concern.

Measurements of up to 16 channels at a resolution of 16 bits, (one part in 65,536) on one of 4 ranges may be taken at rates up to 200,000 samples per second. Discrete digital bi-directional I/O lines (8) can control relays and solenoids, and monitor switch and contact closures.


Software for professional developers, occupational developers and non-programming measurement professionals completes your system. Choose from several powerful options described below, or choose several and use the one suitable to each task.

Analog Input Accuracy 200 kS/s sampling rate, single channel operation and a 15-minute warm-up. Accuracies listed are for measurements made following an internal calibration. They are valid for operational temperatures within ±1°C of internal calibration temperature and ±10°C of factory calibration temperature. Calibrator test source high side tied to Channel 0 High and low side tied to Channel 0 Low. Low-level ground is tied to Channel 0 Low at the user connector.


Table 1 - Absolute Accuracy
Range Absolute Accuracy
±10V ±29.4 LSB
±5V ±13.1 LSB
±500mV ±30.9 LSB
±50mV ±45.2 LSB

Table 2 - Absolute Accuracy Components - All values are (±)
Range % of Reading Offset (µV) Averaged Noise + Quantization (µV)sup1 Temp Drift(%/DegC) Absolute Accuracy at FS (mV)
±10V 0.070 1800 180 0.001 8.984
±5V 0.020 918 85 0.001 2.003
±500mV 0.070 109 12 0.001 0.471
±50V 0.070 27 7 0.001 0.069

1. Averaged measurements assume averaging of 100 single-channel readings

Table 3 - Differential non-linearity

All Ranges 0.5 LSB typ, ±1.0 LSB max
No Missing Codes 16 bits, guraranteed

General Accessories

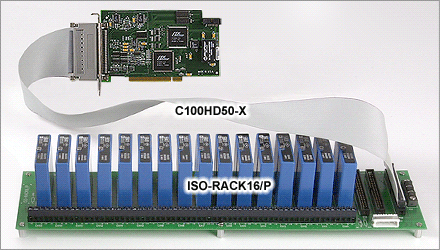

The I/O board used in the accessory photos is not a PCI-DAS6013. It is a representative board with the same connector.
Cable/Screw Terminal Options


Cable/BNC Terminal Options

External Signal Conditioning
