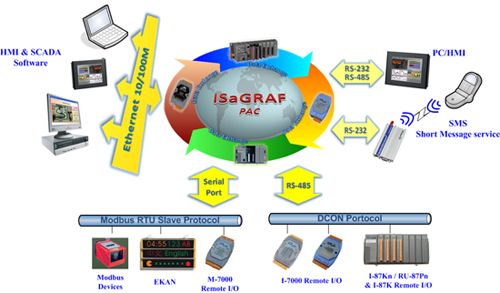

The ISaGRAF application can be easily applied to the I-8417 / 8817 / 8437 / 8837 , I-7188E G/XG and the Wincon-8037/8337/8737 PACs. When adding ISaGRAF programming, there are three distinct advantages. The first is that the PLC language is easy to design. Instead of C language, ISaGRAF supports all five IEC61131-3 languages plus Flow Chart language (FC).
The second advantage is the powerful communication ability. There are 4 communication ports on the I-84X7 / 88X7 controllers. COM1 is a simple RS232 device that is linked to PC running ISaGRAF Workbench. It supports Modbus protocol. For the I-8x17 controller, COM2 is a 2-wire RS485 device that is constructed as a Modbus network system for up to 255 controllers. For the I-8x37 controller, COM2 is a ethernet port supporting Modbus TCP/IP protocol that takes your control system to the Internet world. COM3 is a RS232/RS485 device. It can be user-designed or can be constructed as a RS485 Fbus network so that each I-84X7 / 88X7 controller can access the data from other I-8xx7 controllers on the same Fbus network, therefore becoming a Distributed Control System. COM4 is a RS232 device that can be user-designed.

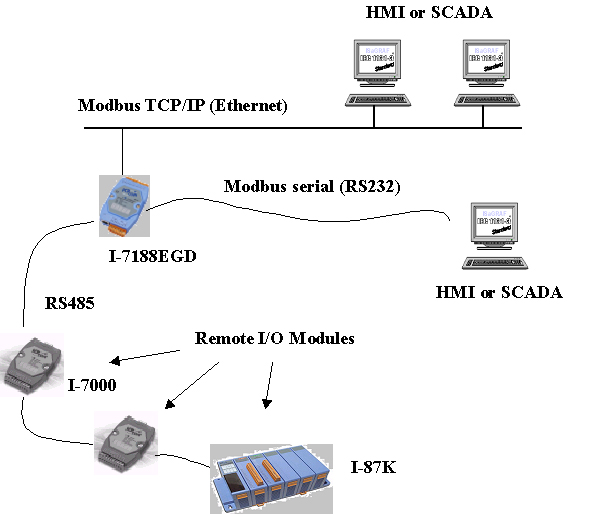

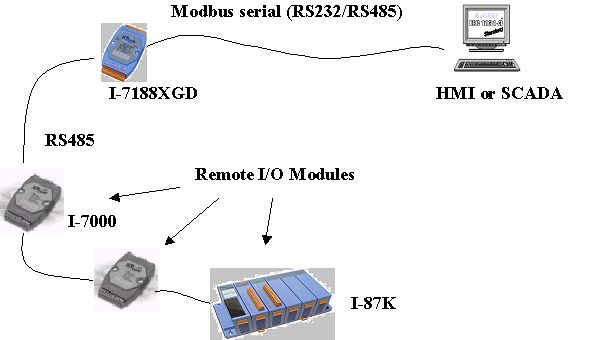

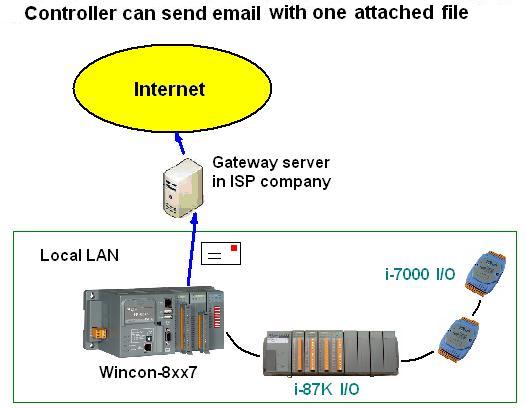

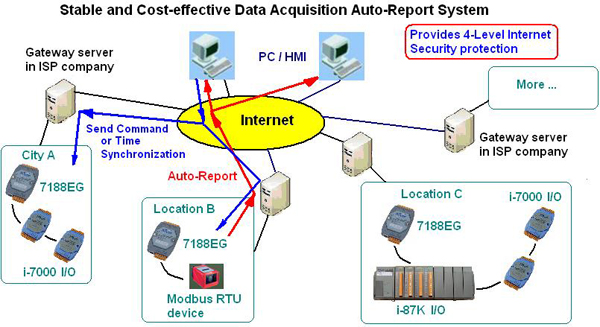

The I-7000 and I-87K series are also supported by the I-8xx7 and I-7188EG/XG controllers. Through the RS485 port of the I-8xx7 (COM3) and I-7188EG/XG (COM2) controllers, I-7000 / I-87K series modules can be used as remote I/Os, controlled by the I-8xx7 and I-7188EG/XG.
The third advantage is that integration with HMI software and MMI become easy and powerful when using the Modbus protocol. Iconics, Intouch, FIX, Wizcon, Citect, Labview, Lablink, Modbus OPC server ... are all examples of HMI software. MMI is similar to the Touch 506/509/510 touch panel or any hardware or software that support Modbus protocol.

Web HMI is available now
WebHMI is a free software mechanism coming with some ICP DAS' s PAC (Programmable Automation Controller),WebHMI offers you to monitor and control the local or remote controller via Internet Explorer running on your PC.

SMS
Short Message Service The I-8417/8817/8437/8837, I-7188EG, I-7188XG & Wincon-8037/8337/8737 controller can integrate with a GSM Modem to support SMS: Short Message Service. This allows user to request information or control something from his own cellular phone to the ISaGRAF controller. Beside, the controller can also send information and alarms to user's cellular phone.

Data log
data, date & time can be stored at S256/S512 for I-8xx7, while X607/X608 for I-7188EG/XG, and then PC can load these data via RS232/RS485, ethernet & Modem.

MMICON: ICP DAS's Man Machine Interface
The I-8417/8817/8437/8837 & I-7188EG/XG support the ICP DAS's MMICON to become their Man Machine Interface. The MMICON is featured with a 240 x 64 dot LCD and a 4 x 4 Keyboard. User can use it to display picture, string, integer, float, and input a character, string, integer and float. All control logic is written in ISaGRAF program.

Auto-scan I/O
Auto-scan I/O is a ICP DAS's added-on tools for I-8417/8817/8437/8837 to auto-scan I/O boards and auto-declare variables for every found I/O channel.

Spotlight : Simple HMI
Spotlight is a simple HMI coming with ISaGRAF which allows user to build Boolean Icon, Bar Graph, Trend Curve, Value Text, Bitmap Picture to make application more friendly.

Remotely Monitoring & Download Via Modem
COM4 of the I-8417/8817/8437/8837 controller supports full modem signals. It has embedded the Modem_Link protocol for remotely download and monitoring. All you have to do is to dial a phone call from your PC to the faraway controller to monitor every information you want.

Quick LD Editor
The Ladder Diagram (LD) is one of the most familiar methods of representing logical equations and simple actions. Furthermore contacts representing input arguments and coils representing output results are utilized.
The ISaGRAF Quick LD Editor offers you the best compromise between high level graphic capabilities and easy to use keyboard driven programming.
With the ISaGRAF graphic editing tools the user can mix LD and FBD programming on the same chart. Any function or function block of the library can be called from this editor.

FBD Editor
The Function Block Diagram (FBD) is a graphics-based language which allows the user to build complex procedures by taking existing function blocks from the ISaGRAF library, and wiring them together on the screen. ISaGRAF includes a library with more than 60 standard blocks ready to use. And others are available from each target's blocks. For ex. The ICP 8xx7 series.

SFC Editor
The Sequential Function Chart (SFC) divides the process cycle into a number of well-defined steps, separated by transitions. SFC is the core language of the IEC61131-3 standard. The other languages are used to describe the actions performed within the steps and the logical conditions for the transitions. Parallel processes can be easily described using SFC.

Structured Text Editor
Structured Text (ST) is a high level structured language with a syntax similar to Pascal but more intuitive to the automation engineer. This language is mainly used to implement complex procedures that cannot be easily expressed with graphics-based languages (IF / THEN / ELSE, FOR, WHILE...).

Instruction List Editor
Instruction List (IL) is a low-level language, similar to the simple- text PLC languages. In August 1996, the ISaGRAF IL editor received the certificate of PLCopen compliance with a class-rating of IEC61131-3.

Flow Chart Editor
Flow Chart (FC) is a non-IEC61131-3 language. It was added into ISaGRAF in 1998 beginning with Version 3.3. FC is a graphics-based language. It combines "test" , "action" , "flow", and other mechanisms to perform a control process.
