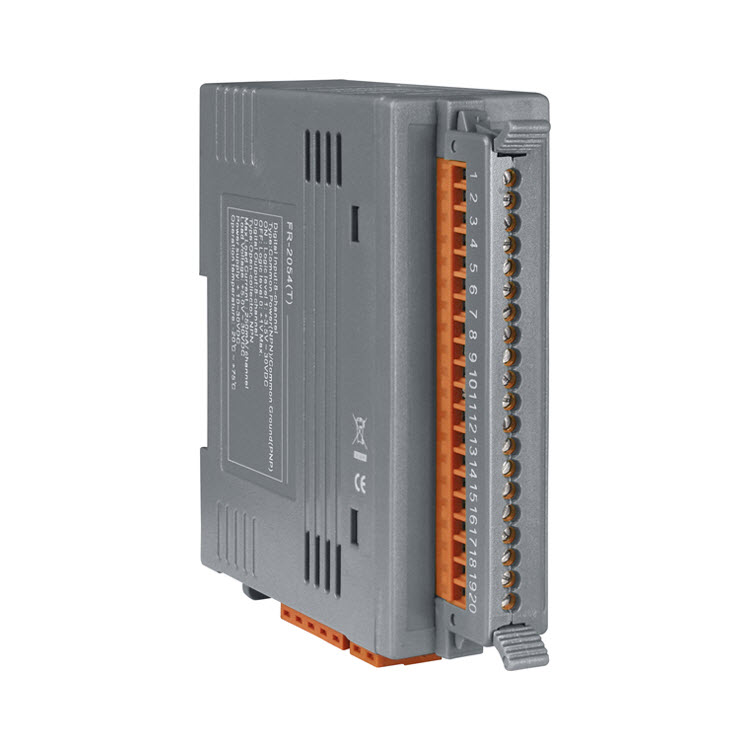

FR-2054T
FR-2054T
8-channel FRNet Isolated Digital Input and 8-channel Isolated Digital Output Module.
|
|
|
|
The FR-2054T module provides 8 Isolated Sink Type Digital Outputs and 8 Isolated Sink/Source
Digital Inputs. The I/O data transmission is controlled by the FRnet control chip developed by
ICPDAS. FRnet was designed to provide deterministic high speed network communication. The
communication mechanism is dominated by the token-stream, which is generated by the network
manager located at a specific node (SA0). This manager provides for fixed scan-time and I/O
synchronization capabilities without the need of any special communication protocol.
Special anti-noise circuitry has also been built into the FRnet control chip to ensure
communication reliability. This distributive digital output module must be connected to other
modules or a host controller with a network manger built in.
- Built-in Wire-saving FRnet DI/DO control
- High-speed transmission reliability
- Simple synchronization mechanism
- No software overhead on protocol processing
- Supporting broadcasting (1:n data transmission)
- Duplicating output easily
- Fixed I/O scan-time and I/O synchronization
- DIN-Rail
|
| Specifications & Additional Information |
|
|
Specifications
|
| Digital
Output |
| Output Channel |
8 |
| Output Type |
Sink, Open-Collector (NPN) |
| Load Voltage |
30 VDC, Max. |
| Load Current |
250mA, Max. |
| Isolation Voltage |
3750 Vrms |
| Digital
Input |
| Input Channel |
8 (Sink/Source) |
| Input Type |
Isolation, One Common for All Digital Inputs |
| On Voltage Level |
+19 VDC ~ 30 VDC |
| Off Voltage Level |
+11 VDC max |
| Input Impedance |
3.3 kOhm |
| Isolation Voltage |
3750 Vrms |
| Interface
|
| 2-wire cabling |
2-wire cabling Belden 9841 (2P twisted-pair cable),
When different cables are used, the transmission distance may change |
| Transfer distance |
Max. 400m for speed 250Kbps
Max. 100m for speed 1Mbps(Default) |
| LED Indicators |
Power, Communication Run, Communication Error, Terminal
resistor, Digital input/output |
| Transfer speed |
250Kbps and 1Mbps(Default)
DIP Switch Settings |
| Cyclic scan time |
2.88ms for speed 250Kbps
0.72ms for speed 1Mbps(Default) |
| Connection |
Removable 20-pin Terminal Block |
| Power
|
| Input Voltage Range |
+10 ~ +30 VDC (Non-isolation) |
| Power consumption |
2W Max |
| Protection |
Power reverse polarity protection |
| Frame Ground for EMS Protection |
Yes |
| Connection |
5-Pin Removable Terminal Block |
|
Mechanical
|
| Casing |
Plastic (Flammability UL 94V-0) |
| Dimensions (W x L x H) |
33 mm x 102 mm x 110 mm |
| Installation |
DIN-Rail |
|
Mechanical
|
| Operating Temperature |
-25°C ~ +75°C |
| Storage Temperature |
-30°C ~ +85°C |
| Ambient Relative Humidity |
10% ~ 90% RH, non-condensing |
|
|
